THE NEXT GENERATION OF COMPACT POWER

RPCS 740-25K

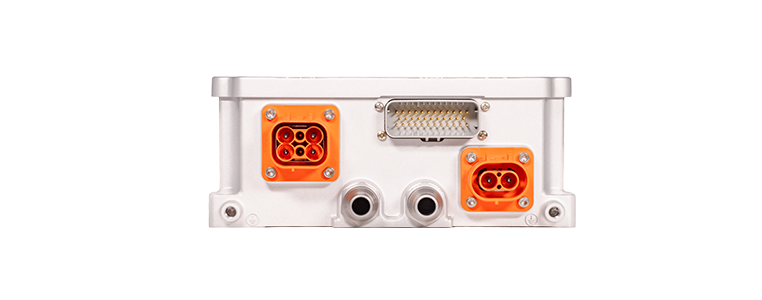

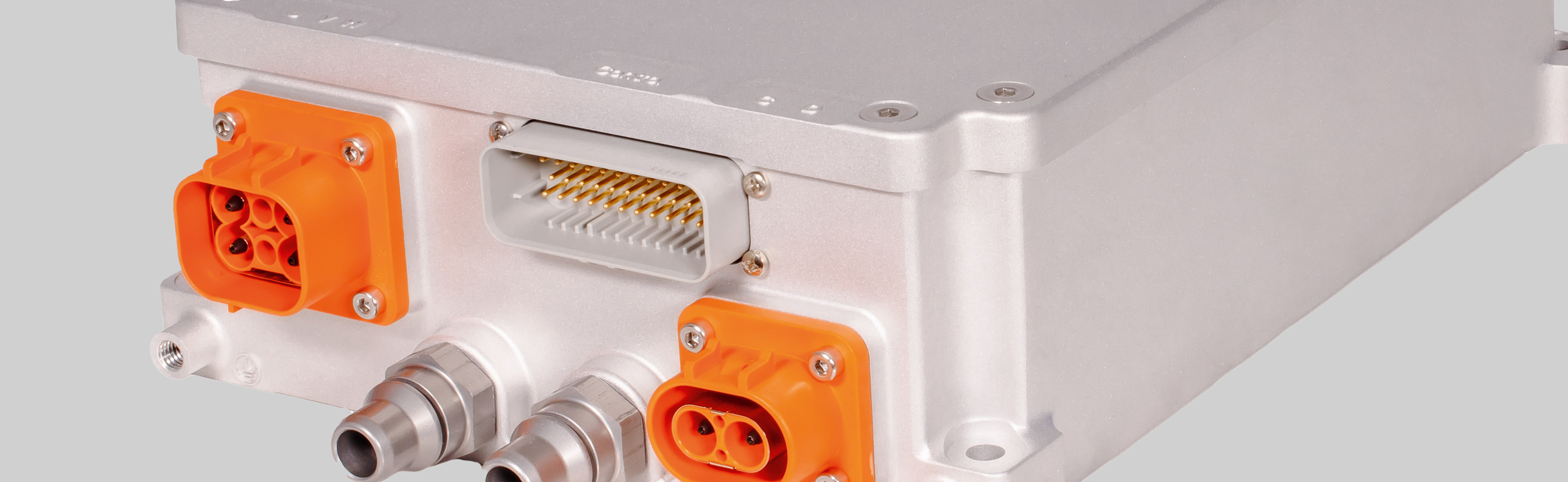

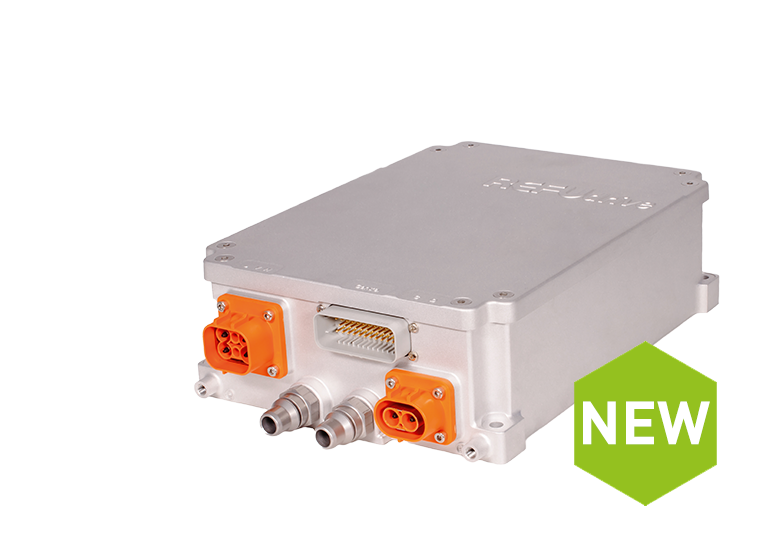

RPCS 740-25K – Compact power for auxiliary drives

The new auxiliary inverter RPCS 740-25K delivers maximum performance in a compact footprint. Providing up to 25 kVA electrical power, it reliably supplies auxiliary units such as HVAC compressors, steering pumps, or brake compressors – even under the most demanding conditions.

With active discharge in less than one second, the RPCS 740-25K ensures maximum safety. Its robust design enables full performance up to 65 °C coolant temperature without derating. Featuring J1939 communication, AEC-qualified components, and developed in accordance with ISO 26262, it fully meets the requirements of the automotive industry.

PERFECT MATCH FOR POWER STEERING PUMP,
HYDRAULIC PUMP, BRAKE COMPRESSOR AND HVAC

Your benefits at a glance:

  • Up to 25 kVA electrical power
  • Compact design – more power at half the size
  • Active discharge < 1 second for maximum safety
  • Reliable operation up to 65 °C coolant temperature
  • Sensorless vector control for any motor type
  • Automotive standards & interfaces (incl. J1939)


  • RPCS 740-17K / -25K:

    • up to 25 kVA

    • Perfect match for steering pump, hydraulic press, brake and HVAC compressor

    • Peak current @ 4 kHz up to 65 A

    • Degree of protection: IP6K9K

    • Ambient temperature: -40 °C to +85 °C

    • Municipal vehicles
    • Construction equipment
    • Commercial vehicles
    • Public transportation
    • Agricultural machines

Most important data at a glance

  RPCS 740-17K RPCS 740-25K
AC output power 17 kVA 25 kVA
Nominal DC voltage 650 V 650 V
Rated current @ 4 kHz 25 A 36 A
DC input voltage range 200 – 850 V 200 – 850 V
Ambient temperature -40 °C to +85 °C -40 °C to +85 °C
